PHOENIX – The rebirth of Electro-Voice Manifold Technology. Designed for tremendous SPL and sonic headroom, as well as ease of transport and set-up, PHOENIX fills the needs of the live sound PA professional who finds that X-Array is just too much and QRx is not enough. The high-output performance of PHOENIX has been optimized to reproduce rock, pop, and dance music. Using dual, ND2, neodymium compression drivers on a manifold horn and state-of-the-art DVX woofers, PHOENIX loudspeakers can perform louder and longer with less stress on system components.

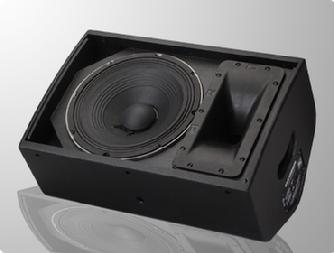

PX1122M
High-Output 12-inch Multi-Purpose Two-Way
The PX1122M features dual, ND2, two-inch voice coils, and one-inch exit neodymium compression drivers.
DVX3121 12-inch, low-frequency transducer with forced-air cooling. Very high sensitivity - 132 dB maximum SPL. Ultracompact, low profile, multipurpose design. 90 degree x 45 degree coverage pattern. 600-watt continuous (2400-watt peak) power handling. Passive and biamp selectable. Integral rigging point for PX-SAM Strong Arm Mount. Pole-mount for tripod use.

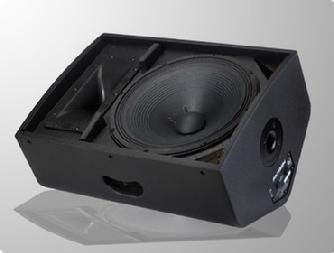

PX1152M
High-Output 15-inch Multi-Purpose Two-Way Monitor
The PX1152 features a dual, ND2, two-inch voice coil, and one-inch, exit neodymium compression drivers.
DVX3150 15-inch, low-frequency transducer with forced air cooling. Very high sensitivity - 132 dB, maximum SPL. Ultracompact, low profile, multipurpose design. 90 degree x 45 degree coverage pattern. 600-watt continuous (2,400W peak) power handling. Passive and biamp selectable. Integral rigging point for PX-SAM Strong Arm Mount. Pole-mount for tripod use.

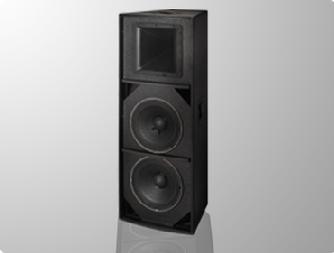

PX2122
High-Output Dual 12-inch Two-Way
The PX2122 features a dual, ND2, two-inch voice coil, and one-inch, exit neodymium compression drivers.
Dual, DVX3121 12-inch, low-frequency transducers with forced air cooling. Long-throw 45 degree x 30 degree rotatable coverage pattern. 1,000-watt continuous (4,000-watt peak) power handling. Biamp-only operation. Very high sensitivity - 138 dB maximum SPL. Integral rigging points for eyebolts or optional rigging kit. Designed to be arrayed with two or more PX2122.
PX2152
High-Output Dual 15-inch Two-Way
The PX2152 features a dual, ND2, two-inch voice coil, and one-inch, exit neodymium compression drivers.
Dual, DVX3150 15-inch, low-frequency transducers with forced air cooling. High sensitivity - 136 dB maximum SPL. 60 degree x 45 degree rotatable coverage pattern. 1,200-watt continuous (4,800-watt peak) power handling. Passive and biamp selectable. Integral points for eyebolts or optional Rigging Kit. Arrayable.

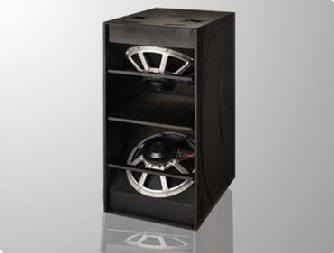

PX2181
High-Output Dual 18-inch Subwoofer
The PX2181 features a dual, horn-loaded, DVX3180 18-inch, low-frequency transducers with forced air cooling.
1,000-watt continuous (4,000-watt peak) power handling. High-efficiency, horn-loaded design. Dual and parallel mode selectable. Very high sensitivity - 141 dB maximum SPL. Integral mounting points on rear panel for optional wheel and caster kit. Enclosure is stackable in both horizontal and vertical orientations.
